SY8120BABC SOT23-6
SY8120B1ABC SOT23-6 更新版本
SY8120I SOT23-6 ADJ 18V 2A
主要應用領域：
引腳兼容型號：
SY8120BABC.PDF
SY8120B1ABC.PDF
SY8120IABC.PDF
SY8120 內置MOS 2A/18V同步降壓轉換芯片
概述：
SY8120 develops high efficiency synchronous step down DC-DC converter capable of delivering 2A load current. SY8120 operates over a wide input voltage range from 4.5V to 18V and integrates main switch and synchronous switch with very low RDs(on) to minimize the conduction loss
SY8120 adopts the instant PWM architecture to achieve fast transient responses for high step down applications and high efficiency at light loads. In addition, it operates under heavy load conditions to minimize the size of inductor and capacitor
特性：
Low RDs(oN) for internal switches (top/bottom): 145/135mR
4.5-18V input voltage range
2A load current capability
Instant PWM architecture to achieve fast transient responses Internal softstart limits the inrush current
2% 0.6V reference
RoHS Compliant and Halogen Free
Compact package: SOT23-6

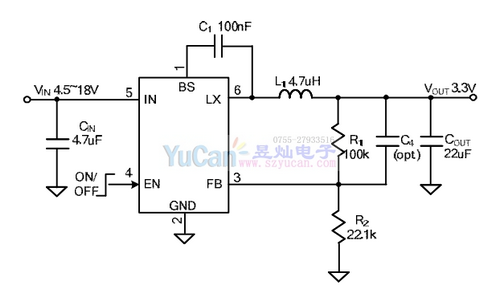

典型應用：
